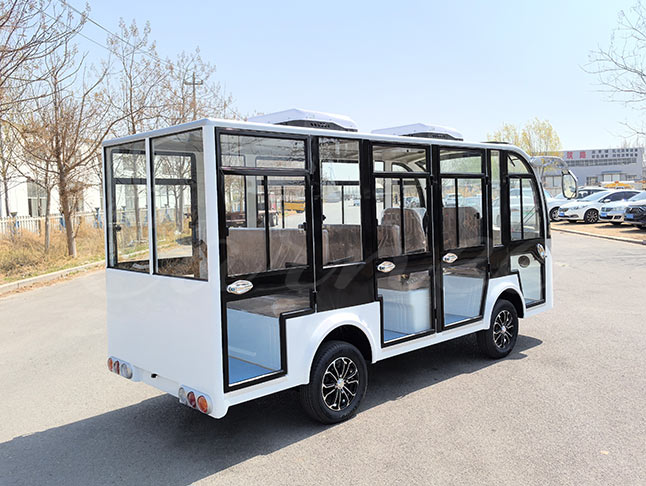

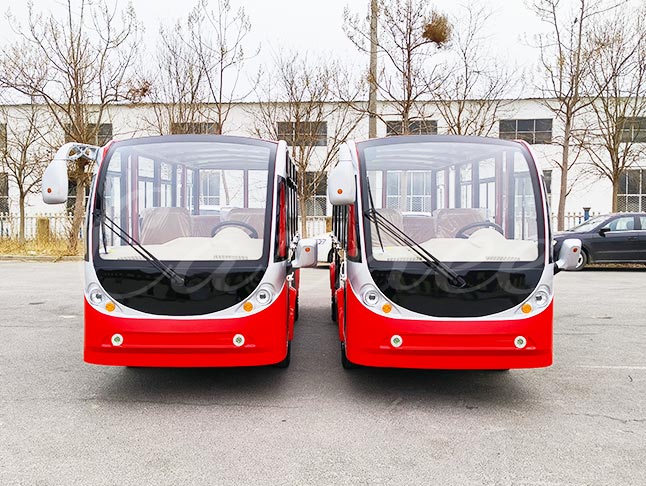

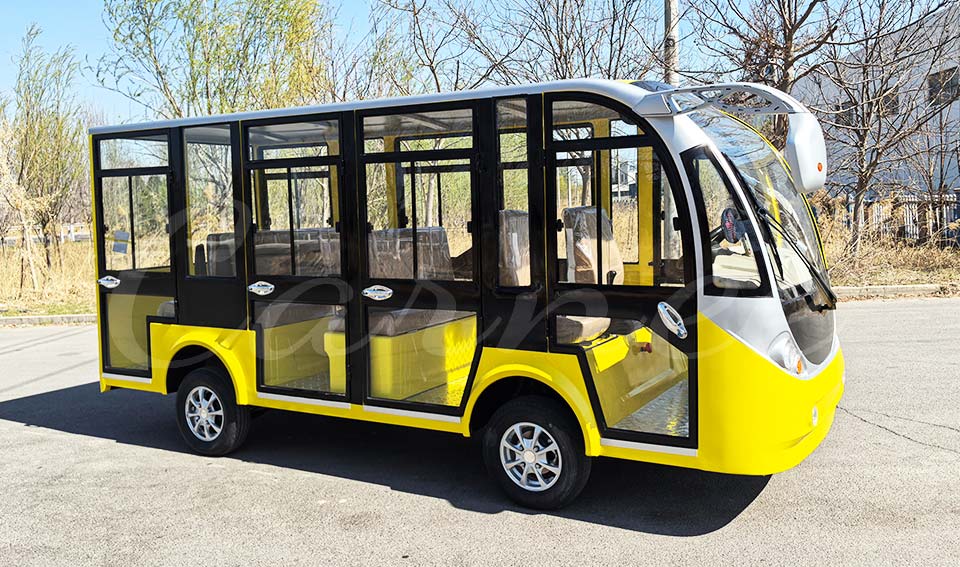

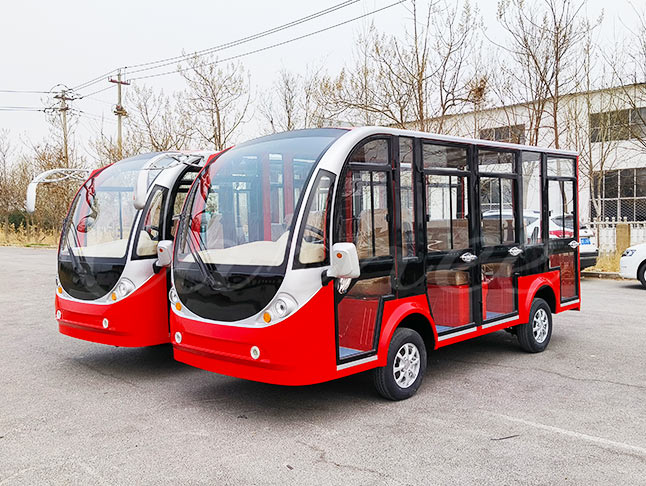

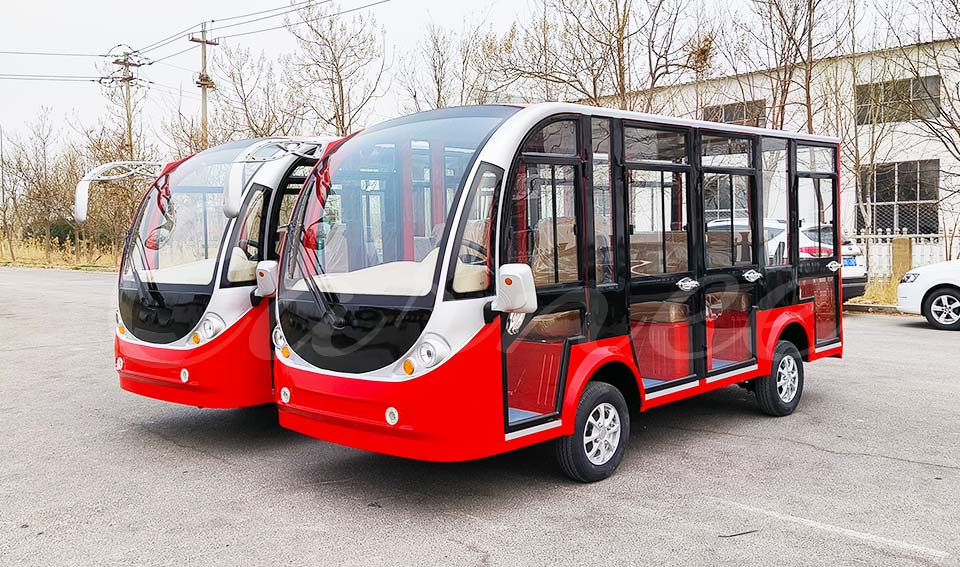

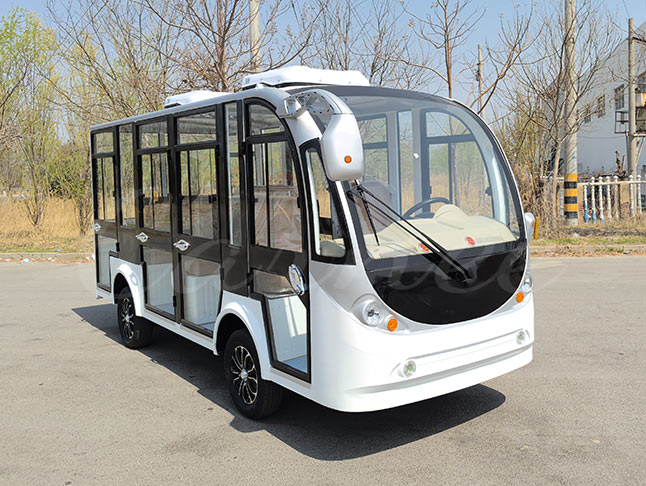

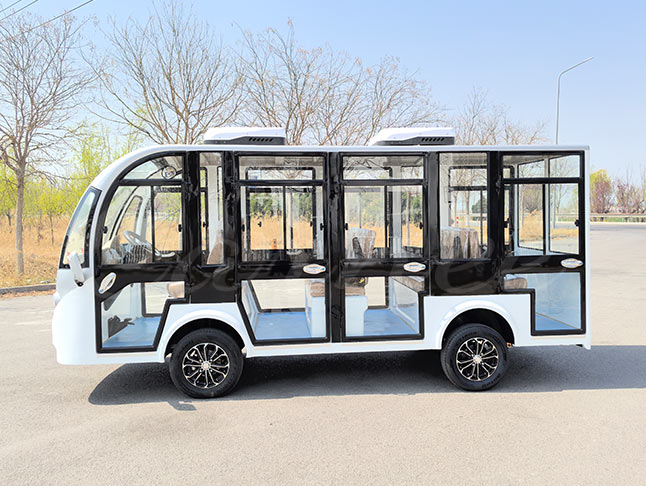

The 11-Seater Closed Electric Sightseeing Bus offers a comfortable, eco-friendly, and quiet travel experience. Ideal for scenic spots and resorts, it features a modern design, zero emissions, and low maintenance costs, making it the perfect green transport solution for your guests.
This is the product standard specification. lf you would like to customize on the shape, size, color, logo, feel free to contact us please!
| Electrical System | |
|---|---|
| Controller | 72v-400A Full Intelligent Controller |
| Battery | 12v100AH, 6 blocks of 72v (Gel Maintenance-Free) |
| Motor | 4kw AC Motor |
| Charger | Onboard Sealed Intelligent Charger |
| Charging Time | 8-10 hours (80% discharge rate) |
| Technical Specifications | |
| Charging Input Voltage | 220v |
| Dimensions (L×W×H) | 4400×1580×2080mm |
| Seating Capacity | 11 people |
| Vehicle Weight | 1100kg |
| Maximum Speed | 30km/h |
| Vehicle Load | 1400kg |
| Maximum Gradient | 15% |
| Front and Rear Track | 1350/1370mm |
| Minimum Turning Radius | 6.75m |
| Wheelbase | 2220mm |
| Range | Approximately 80km |
| Ground Clearance | 200mm |
| Braking Distance | ≤6m |
| Body System | |
| Seats | Three rows of seats, beige or black |
| Body | High-strength automotive steel + steel frame |
| Instrument Panel | Instrument display (including voltage, current, speed, mileage, lights, front and rear turn signal lights) |
| Rearview Mirrors | Manual type |
| Lights and Signals | Combination front lights, turn signals, combination rear lights, brake lights, electric horn |
| Sound System | Onboard MP3, professional speakers |
| Switches | Start switch, light and wiper combination switch, forward/reverse gear switch |
| Doors | Present |
| Frame | Steel structure frame |
| Steering Wheel | Polyurethane foam steering wheel |
| Chassis System | |
| Power Transmission System | Continuous Variable Transmission System |
| Steering System | Rack and pinion steering mechanism |
| Front Axle and Suspension | Independent suspension |
| Rear Axle and Suspension | Integrated rear axle + high-strength steel plate springs + hydraulic shock absorbers |
| Braking System | Front and rear drum hydraulic brakes, dual-circuit hydraulic brakes, and parking brake |
| Wheels | 12×4.5 alloy wheels + 155R12 vacuum tires |
Carnee Rides can send engineers to help you install the amusement rides on site if you need.
No matter when there is any problem with the equipment, you can contact us for the solution or support, and we can provide 7*24 hours services.
Carnee Rides can arrange engineers to provide video guidance and help when you install the amusement rides
Carnee Rides will provide an installation manual before shipment, providing guidance throughout the process to ensure that you can work normally after receiving the goods.
Experience the Perfect Blend of Comfort and Sustainability – Our 11-Seater Closed Electric Sightseeing Bus
Our 11-Seater Closed Electric Sightseeing Bus is designed with the latest electric drive technology to provide a comfortable, eco-friendly, and efficient travel experience for scenic spots, resorts, campuses, and more. Built with high-strength automotive steel and a robust steel frame, this shuttle vehicle ensures durability and safety while delivering a smooth, comfortable ride.
Unlike the 23-seater large sightseeing buses, this vehicle with four rows is a small electric shuttle bus, taking up less space and offering better manoeuvrability. It is the king of cost-performance!
Eco-Friendly and Energy-Efficient: Powered by electricity, this electric shuttle car produces zero emissions, significantly reducing air pollution. Compared to traditional internal combustion engine vehicles, our electric sightseeing buses are more energy-efficient, making them a greener choice for sustainable transportation.
Low Noise for a Peaceful Ride: Unlike traditional sightseeing buses, our electric vehicle operates quietly, minimising noise pollution and providing a calm, pleasant environment for passengers and those around the vehicle.
Low Maintenance Costs: The electric drive system is simple and efficient, eliminating the need for regular oil and filter replacements. This greatly reduces maintenance costs and increases the vehicle's long-term value.
Comfortable Driving Experience: The electric drive system offers smooth acceleration without vibrations or exhaust noise, ensuring a relaxed and comfortable journey. The electric shuttle bus is also equipped with air conditioning and a professional audio system to enhance the passenger experience.
High Flexibility and Manoeuvrability: With a small turning radius of 6.75 meters, this 11-seater closed electric sightseeing car is perfect for navigating narrow spaces, such as in scenic areas or parklands. The low body height and spacious seats further enhance passenger convenience when getting on and off.
Customizable Options: The vehicle offers great flexibility in appearance and internal configurations, and we provide customisation services to meet your specific needs, making it ideal for different occasions and environments.
Supporting the Growth of Green and Sustainable Industries: By choosing our enclosed electric sightseeing bus, you can promote environmental awareness and contribute to the growth of energy-saving, eco-friendly industries, helping cities move towards sustainable development in the future.
Scenic Areas and Tourist Spots: Provide tourists with an eco-friendly and quiet transportation option for enjoying the sights.
Resorts and Holiday Villages: Ideal for internal transportation within resort complexes, enhancing the guest experience.
Parks and Campuses: Perfect for providing an efficient and sustainable transport solution for large parks, campuses, and business districts.
Seating Colours and Materials: Choose from beige or black seats.
Body Colour & Logo: Custom body colours and logo options are available to align with your brand.
Doors: Equipped with safety doors for easy passenger access.

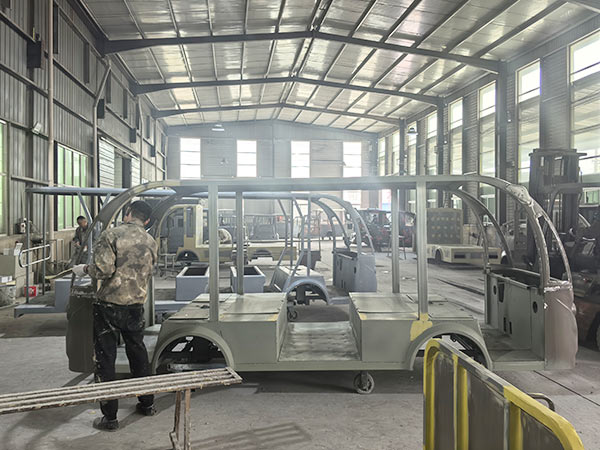

We have over 20 years of electric shuttle bus manufacturing experience, specialising in high-quality, eco-friendly electric sightseeing vehicles. With our extensive industry history, we are proud to offer a wide range of sightseeing vehicles to meet our customers' needs. Our commitment to innovative design, sustainability, and customer satisfaction has earned us a strong reputation in the global market.
As one of the leading electric shuttle bus manufacturers, we continuously strive to push the boundaries of electric transportation, offering tailored solutions for parks, resorts, and other venues that prioritise environmentally friendly travel options.
CARNEE Rides' electric shuttle buses are widely used globally, including in Germany, France, the USA, Australia, Canada, the UAE, Algeria, and Kenya. These buses are commonly deployed at airports, parks, and other public spaces, offering eco-friendly and efficient transportation solutions. For example, in French airports, electric shuttle buses help passengers smoothly transfer between terminals; in Australian city parks, they provide sustainable transportation; and in Algeria and Kenya, they offer convenient short-distance travel in public areas, demonstrating the shuttle bus' flexibility and reliability in various environments.
